Muck-Truck Minidumpers

The original since 1994!

The original minidumper – the Muck Truck – has been in production since 1994. To date, over 60,000 Muck Trucks have been sold worldwide. Since August 2006, we have also been offering the manufacturer’s various models in Germany.
The Muck-Truck minidumpers are motorized wheelbarrows with a Honda petrol or electric engine, manual transmission and permanent four-wheel drive. Constantly improved and further developed, the Muck truck has made a name for itself worldwide over the years.

Overview

Impressions

Max II

Facts at a glance:
  • The dumper has a 5.5 hp gasoline engine, which is started via a pull-wire starter.
  • It is self-propelled and the skip can be tilted.
  • Up to 550kg Payload possible
  • Materials and components have been significantly improved compared to the predecessor
  • Extensive accessories and extreme versatility
  • Very good climbing ability (up to 40 degrees)
  • Simple operation for ergonomic working
Technical data:
  • Engine: Honda GXV 160
  • Drive: Permanent all-wheel drive
  • Power: 5.5 hp
  • Speed: 6 km/h – infinitely variable
  • Fuel: Gasoline
  • Transmission: 3/1 manual gearbox
  • Payload: 550 kg
  • Trough capacity: 227 liters
  • Empty weight: 130 kg
  • Climbing ability: 40 degrees / 84 %
  • Brake system: dead man’s switch
  • Tires: Traction tires
  • Dimensions: 165 x 74 x 95 cm
  • Volume: approx. 79 db

Moritz

Facts at a glance:
  • The dumper has a 5.5 hp gasoline engine, which is started via a pull-wire starter.
  • It is self-propelled and the skip can be tilted.
  • Up to 400kg payload possible
  • Extensive accessories and extreme versatility
  • Very good climbing ability (up to 40 degrees)
  • Simple operation for ergonomic working
Technical data:
  • Engine: Honda GXV 160
  • Drive: Permanent all-wheel drive
  • Power: 5.5 hp
  • Speed: 6 km/h – infinitely variable
  • Fuel: Gasoline
  • Transmission: 3/1 manual gearbox
  • Payload: 400 kg
  • Trough capacity: 177 liters
  • Empty weight: 110 kg
  • Climbing ability: 40 degrees / 84 %
  • Brake system: dead man’s switch
  • Tires: Traction tires
  • Dimensions: 160 x 74 x 92 cm
  • Volume: approx. 79 db

H-Max

Facts at a glance:
  • The H-Max offers 25% more capacity than the standard Muck truck
  • Up to 450kg payload possible
  • Hydraulic tilt function
  • Extensive accessories and extreme versatility
  • Very good climbing ability (up to 30 degrees)
  • Simple operation for ergonomic working
Technical data:
  • Engine: Honda GXV 160
  • Drive: Permanent all-wheel drive
  • Power: 5.5 hp
  • Speed: 6 km/h – infinitely variable
  • Fuel: Gasoline
  • Transmission: 3/1 manual gearbox
  • Payload: 450 kg
  • Trough capacity: 283 liters
  • Empty weight: 184 kg
  • Climbing ability: 40 degrees / 84 %
  • Brake system: dead man’s switch
  • Tires: Traction tires
  • Dimensions: 183 x 74 x 106 cm
  • Volume: approx. 79 db

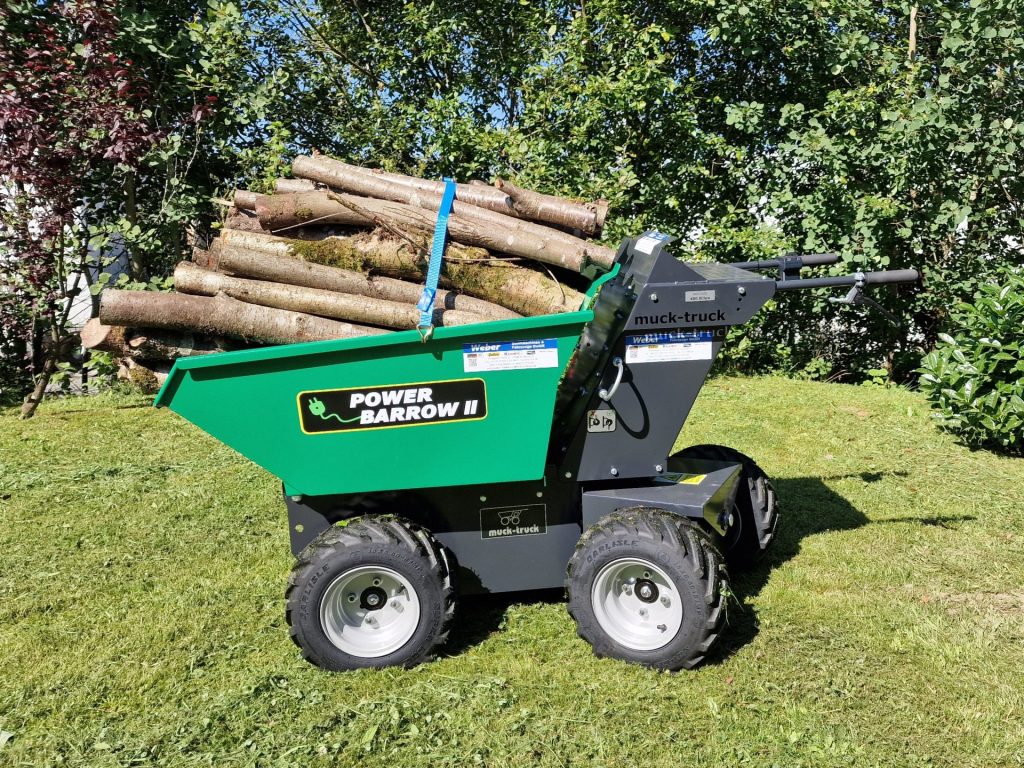

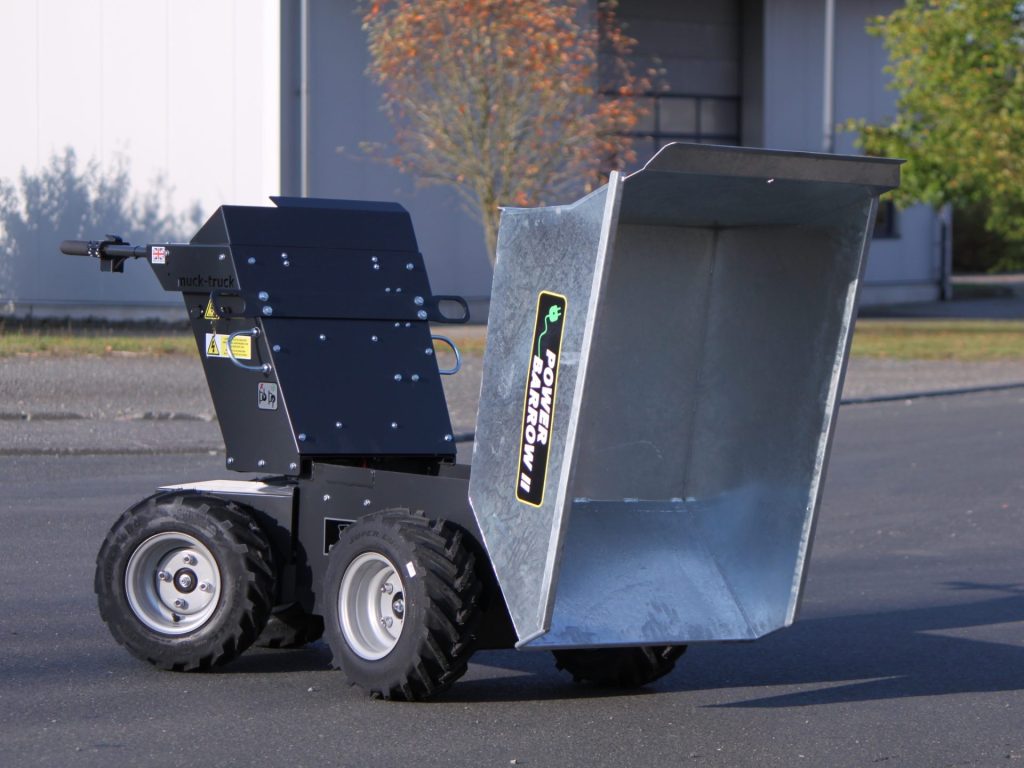

PowerBarrow 4WD II

Facts at a glance:
  • All-wheel drive, swing axle and electric tipping function – the new minidumper from Muck-Truck
  • Powered by two 12-volt traction batteries
  • With its 227 liter trough, it can carry a load of 480 kg
  • Inclines of 30 degrees (approx. 57%) are no problem for him
  • Sometimes more, sometimes less stressed, the battery optimally withstands the daily workload
  • It is fully recharged overnight
  • Very maneuverable – tight turning radius
  • Compared to minidumpers with combustion engines, you can save up to €20 a day
Technical data:
  • Motor: electric motor (24V/1400W)
  • Drive: Permanent all-wheel drive
  • Speed: 6.5 km/h – infinitely variable
  • Charging time: max. 6 hrs.
  • Battery life: up to approx. 8 hours.
  • Transmission: Electronic/Automatic
  • Payload: 480 kg
  • Trough capacity: 226 liters
  • Unladen weight: 265 kg
  • Climbing ability: 30 degrees / 57 % (no stairs)
  • Brake system: Electromagnetic brake
  • Tires: Traction tires
  • Dimensions: 178 x 76 x 97 cm
  • Volume: max. 5db

PowerBarrow Pro

Facts at a glance:
  • Equipped with joystick control
  • Electric tipping
  • Powered by two 12-volt traction batteries
  • All-wheel drive
  • Compared to minidumpers with combustion engines, you can save up to €20 a day
  • Battery charges fully within 6 hours
  • With normal use, the full battery lasts a complete working day
Technical data:
  • Motor: electric motor (24V/1400W)
  • Drive: Permanent all-wheel drive
  • Speed: 6.5 km/h – infinitely variable
  • Charging time: max. 6 hrs.
  • Battery life: up to approx. 8 hours.
  • Transmission: Electronic/Automatic
  • Payload: 480 kg
  • Trough capacity: 226 liters
  • Unladen weight: 265 kg
  • Climbing ability: 30 degrees / 57 % (no stairs)
  • Brake system: Electromagnetic parking brake
  • Tires: Traction tires
  • Dimensions: 163 x 76 x 97 cm
  • Volume: max. 5db

Muck-Truck minidumper attachments

With the large number of attachments, the Muck-Truck minidumper is a real multifunctional tool!

We will be happy to advise you on which attachments are suitable for your personal requirements.

Available for all models. For Muck-Truck Moritz only available for front axle.

Available for all models. For Moritz only available for front axle.

For Muck-Truck MAX, Moritz and H-MAX. Also available for E-Truck and PowerBarrow by arrangement.

For MAX, Moritz, E-Truck and H-MAX.

Increase the skip volume by approx. 80 l. Only suitable for light goods.

In 100 cm and 120 cm width. Ideal for mounting on gasoline models. Only suitable for electric models with very little snow.

For mounting on all models.

Galvanized with rubber plate covering for MAX, Moritz and E-Truck.

Larger wooden platform with tines only for H-MAX. Attention: Not to be used as a power lifter or sack truck!

On request in different colors and with different coatings.

Only on request for MAX, Moritz, E-Truck and H-MAX.

For attachment to all machines.

Very suitable for renting out.

Suitable for sanding after paving work.

If you are interested in the KehrFix as an attachment for other appliances, please take a look at our KehrFix attachment broom product page or contact us.

Suitable for all models by arrangement.

For parking on very steep inclines.

Available for all models by arrangement.

For mounting on all models.

Attachment for Muck-Truck MAX and Moritz

FAQ - Frequently Asked Questions

The choice of the right motorized wheelbarrow depends on various factors, such as the weight of the material to be transported, the location of the construction site (e.g. in a residential area or indoors), the condition of the ground (whether flat or uneven) and the size of the trough that is required. Electric or hydraulic tipping can also be an important criterion, depending on how comfortable and efficient you want to use the device in your everyday work. Muck-Truck offers a variety of models that are tailored to different requirements. We are happy to advise you on which model is best suited to your specific application so that you can find the perfect motorized wheelbarrow for your needs.

The price of a Muck Truck is justified by the high quality and durability of the device. Muck Trucks are professional devices that were specially developed for commercial use and therefore offer significantly greater robustness and reliability than cheaper models. With a cheap mini dumper, you may save money in the short term, but in the long term you will incur higher costs due to repairs and more frequent replacements. Muck Trucks offer you reliable performance for years, even under difficult conditions, which makes the investment worthwhile in the long term. Of course, it always depends on your individual requirements and operating conditions whether investing in a Muck Truck is worthwhile for you. But especially if you are looking for a durable, powerful and low-maintenance device, the Muck Truck is definitely a worthwhile choice.

You can get spare parts for your Muck-Truck mini dumper from our nationwide dealer network, which is managed by Weber Baumaschinen und Fahrzeuge GmbH. Many of our dealers not only offer spare parts, but also maintenance and repair services. If you have any questions or need support, we are of course available to you directly and will take care of the spare parts you need as well as all other services for your motorized wheelbarrow.

To adjust the brakes on the motorized wheelbarrow, the gear lever must be set to “N”. Make sure that the air pressure in all six wheels is “2.1” bar and that the coil spring of the brake lever has the original length (78.5 mm). The brake pads should be at least 4 mm thick and the brake disc at least 3.8 mm thick, without blue coloring (no burnout). The machine is difficult to push because the wheels are connected to each other. It may only be driven with the red lever operated, otherwise it could burn out. To adjust the brakes: Close the fuel tap, lift the machine and turn the M8 nut clockwise in ¼ turn increments. After each adjustment, test whether the machine can be pushed without operating the red lever. If the machine cannot be pushed, tighten the nut further until the lever is operated and the machine rolls again. If the machine cannot be pushed despite operating the red lever, the brake is set too tightly. Loosen the nut in ¼ turn increments until the machine can be pushed and test whether it stops when the lever is released. Make sure that the red lever touches the handle tube when operated to avoid damage caused by unnecessary pressure. It is important that the motor and transmission always have enough power to move the machine despite the braking effect.

You can contact us by email: info@mucktruck-deutschland.de or by phone: +49 2753 603 980
